Sumitomo

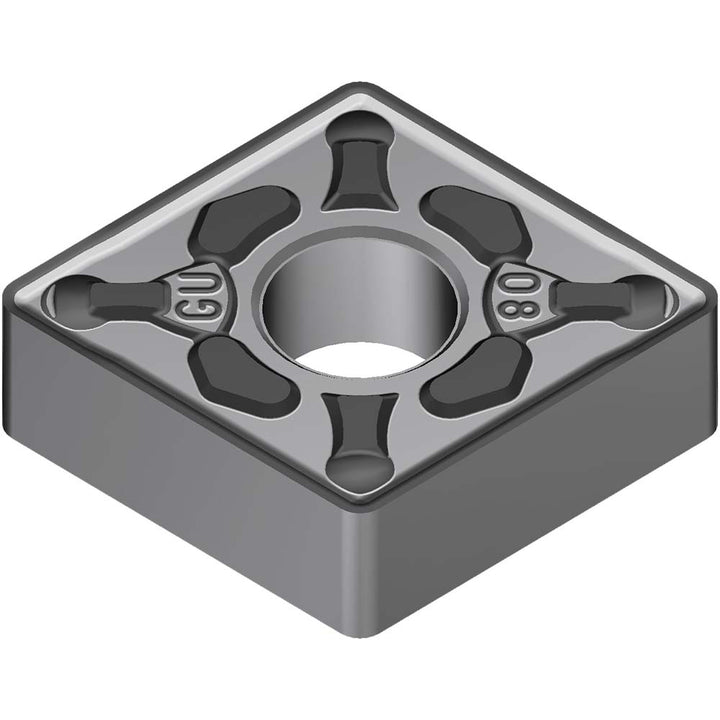

CNMG120408N-GU Solid Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5335
MFR# 19R5335ISO/ANSI# CNMG120408N-GUCat# CNMG432EGU-AC6020MSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC6020M
MaterialSolid Carbide
CoatingAbsotech Platinum
Description
The Sumitomo 19R5335 is a CNMG120408N-GU solid carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.
Specifications
Ansi codeCNMG432EGU
Chip breakerEGU
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/32
Cutting directionNeutral
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-GU
Manufacturers catalog numberCNMG432EGU-AC6020M
Manufacturer gradeAC6020M
Material gradeM20
Multi use toolYes
Primary workpiece materialStainless Steel
RakeNegative
Rake angle7
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
