Sumitomo

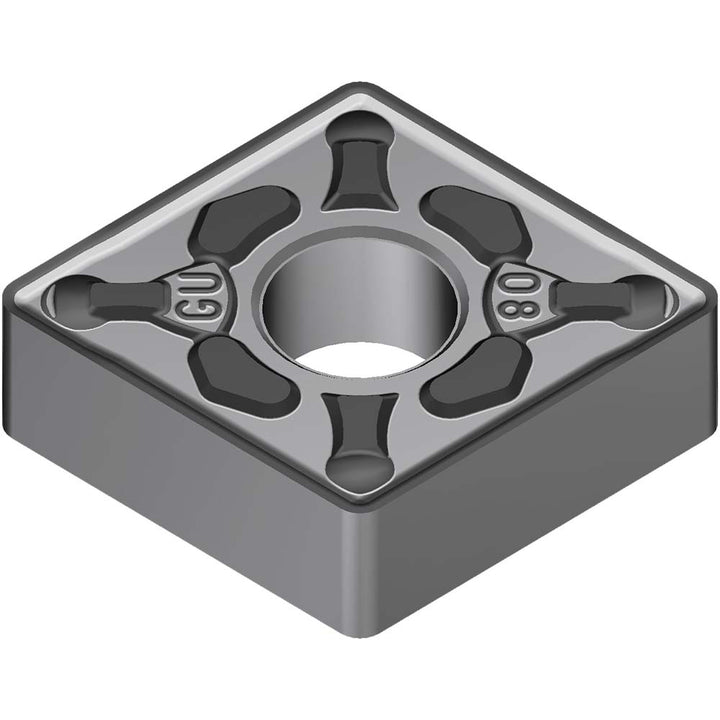

CNMG120412N-GU Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5336
MFR# 19R5336ISO/ANSI# CNMG120412Cat# CNMG433EGU-AC6020MSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC6020M
MaterialCarbide
CoatingAbsotech Platinum
Description
The Sumitomo 19R5336 is a CNMG120412N-GU carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.
Specifications
Ansi insert codeCNMG433
Ansi size code433
Chip breakerEGU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in3/64
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412N-GU
Iso insert codeCNMG120412
Iso size code120412
Manufacturers catalog numberCNMG433EGU-AC6020M
Manufacturer gradeAC6020M
Material gradeM20
Multi use toolYes
Primary workpiece materialStainless Steel
RakeNegative
Rake angle7
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
