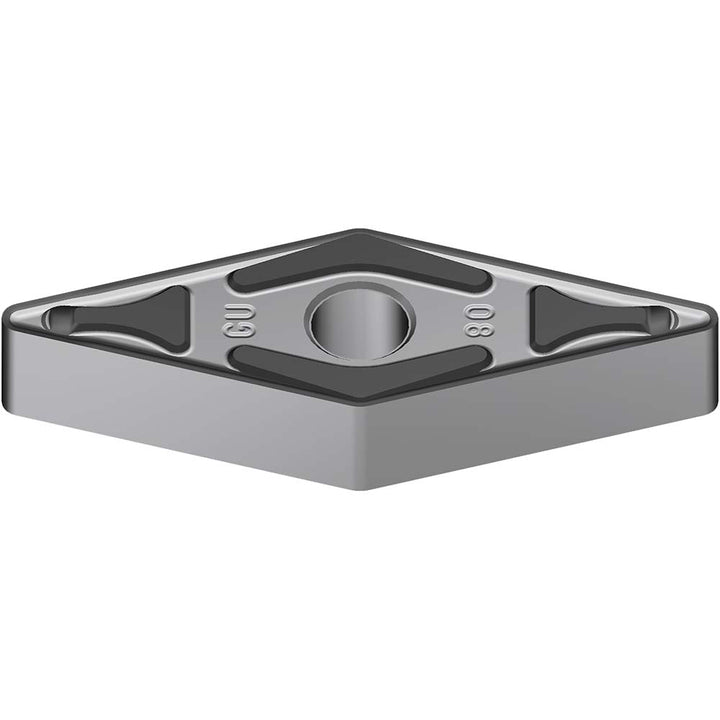

VNMG160408N-GU Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5342
MFR# 19R5342ISO/ANSI# VNMG160408N-GUCat# VNMG332EGU-AC6020MSeries VN
$21.18List $26.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC6020M
MaterialCarbide
CoatingAbsotech Platinum
Description
The Sumitomo 19R5342 is a VNMG160408N-GU carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.
Specifications
Chip breakerEGU
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/32
Full radiusNo
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-GU
Manufacturers catalog numberVNMG332EGU-AC6020M
Manufacturer gradeAC6020M
Material gradeM20
Multi use toolYes
Primary workpiece materialStainless Steel
RakeNegative
Rake angle7
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
