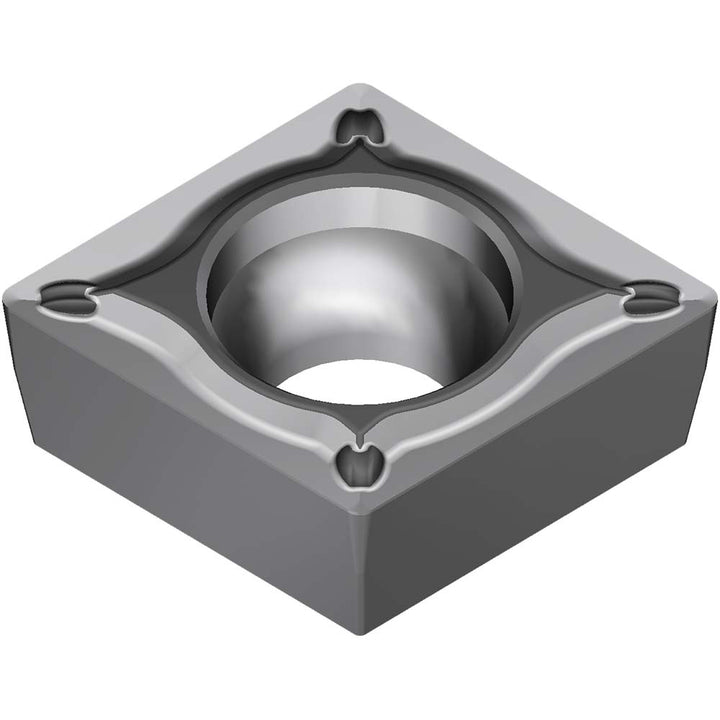

CCMT09T304N-SU Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5BPE

Sumitomo

CCMT09T304N-SU Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5BPE

MFR# 19R5BPEISO/ANSI# CCMT09T304N-SUCat# CCMT32.51ESU-AC6020MSeries CC

$10.45List $13.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC6020M
MaterialCarbide
CoatingAbsotech Platinum

Description

The Sumitomo 19R5BPE is a CCMT09T304N-SU carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.

Specifications

Ansi size code32.51
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/64
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304N-SU
Iso size code09T304
Manufacturers catalog numberCCMT32.51ESU-AC6020M
Manufacturer gradeAC6020M
Material gradeM20
Multi use toolYes
Primary workpiece materialStainless Steel
RakePositive
Rake angle8
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
