Sumitomo

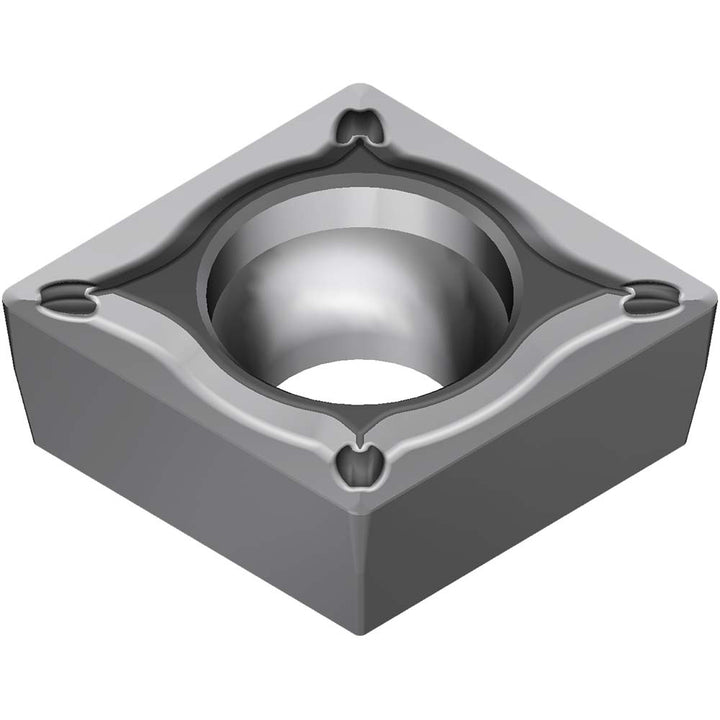

CCMT09T308N-SU Solid Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5BPF
MFR# 19R5BPFISO/ANSI# CCMT09T308N-SUCat# CCMT32.52ESUAC6020MSeries CC
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC6020M
MaterialSolid Carbide
CoatingAbsotech Platinum
Description
The Sumitomo 19R5BPF is a CCMT09T308N-SU solid carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.
Specifications
Ansi codeCCMT32.52ESU
Chip breakerESU
Clearance codeC
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/32
Cutting directionNeutral
Full radiusNo
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308N-SU
Manufacturers catalog numberCCMT32.52ESUAC6020M
Manufacturer gradeAC6020M
Material gradeM20
Multi use toolYes
Primary workpiece materialStainless Steel
RakePositive
Rake angle8
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
