Sumitomo

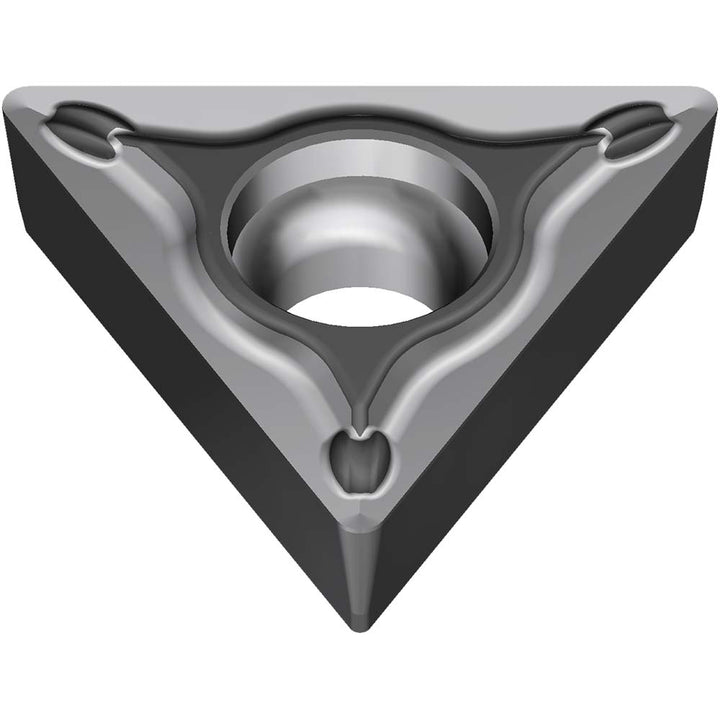

TCMT16T304N-SU Solid Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5BPT
MFR# 19R5BPTISO/ANSI# TCMT16T304N-SUCat# TCMT32.51ESU-AC6020MSeries TC
$12.96List $16.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC6020M
MaterialSolid Carbide
CoatingAbsotech Platinum
Description
The Sumitomo 19R5BPT is a TCMT16T304N-SU solid carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.
Specifications
Ansi codeTCMT32.51ESU
Chip breakerESU
Clearance codeC
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/64
Cutting directionNeutral
Full radiusNo
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T304N-SU
Manufacturers catalog numberTCMT32.51ESU-AC6020M
Manufacturer gradeAC6020M
Material gradeM20
Multi use toolYes
Primary workpiece materialStainless Steel
RakePositive
Rake angle8
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
