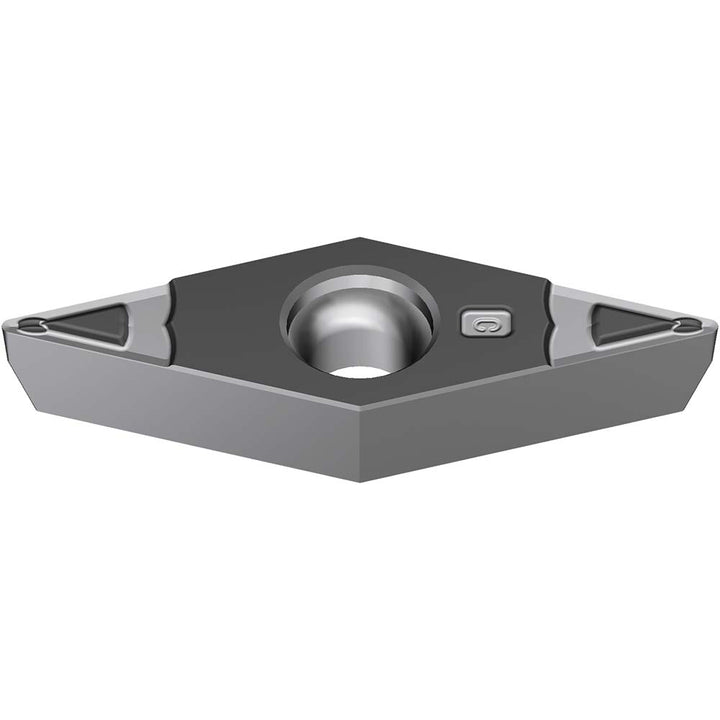

VBMT160404N-SU Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5BPV
MFR# 19R5BPVISO/ANSI# VBMT160404N-SUCat# VBMT331ESU-AC6020MSeries VB
$21.74List $27.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC6020M
MaterialCarbide
CoatingAbsotech Platinum
Description
The Sumitomo 19R5BPV is a VBMT160404N-SU carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.
Specifications
Chip breakerESU
Clearance codeB
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/64
Full radiusNo
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404N-SU
Manufacturers catalog numberVBMT331ESU-AC6020M
Manufacturer gradeAC6020M
Material gradeM20
Multi use toolYes
Primary workpiece materialStainless Steel
RakePositive
Rake angle8
Relief angle5
StandardsANSI; ISO 13399
Tolerance codeM
