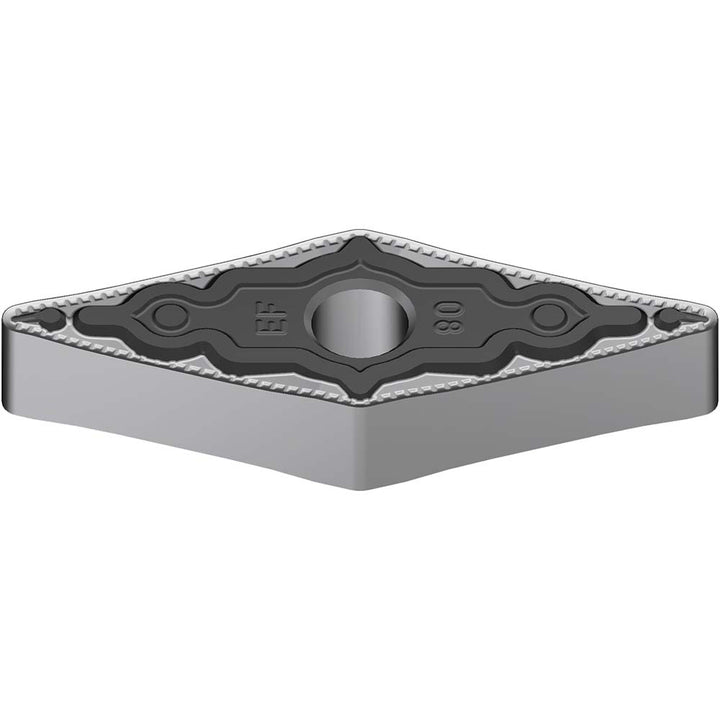

VNMG160402N-EF Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5CHU

Sumitomo

VNMG160402N-EF Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5CHU

MFR# 19R5CHUISO/ANSI# VNMG160402Cat# VNMG330.5EEF-AC6020MSeries VN

$18.42List $23.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC6020M
MaterialCarbide
CoatingAbsotech Platinum

Description

The Sumitomo 19R5CHU is a VNMG160402N-EF carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.

Specifications

Ansi insert codeVNMG330.5
Ansi size code330.5
Chip breakerEEF
Chip breaker operationFinishing
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius0.0078
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code330.5
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160402N-EF
Iso insert codeVNMG160402
Iso size code160402
Manufacturers catalog numberVNMG330.5EEF-AC6020M
Manufacturer gradeAC6020M
Material gradeM20
Multi use toolYes
Primary workpiece materialStainless Steel
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
