Sumitomo

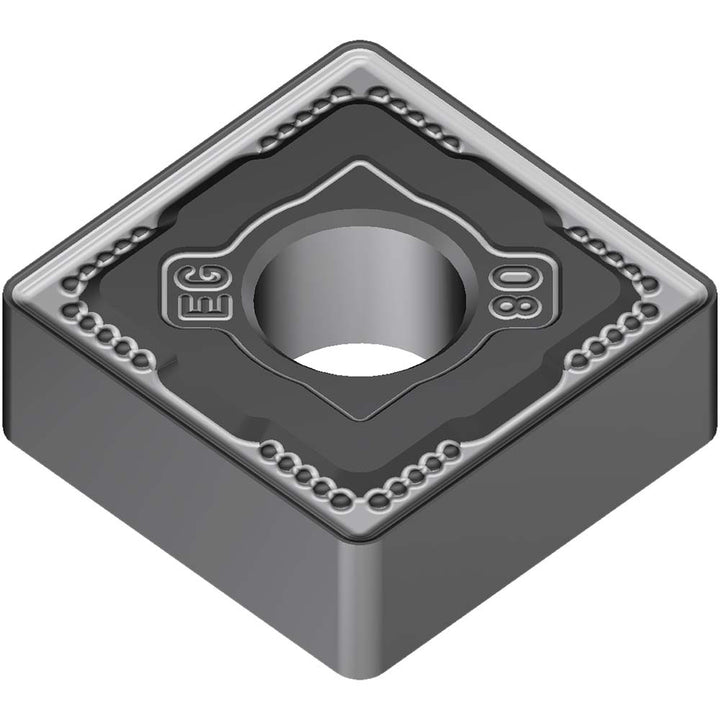

SNMG190612N-EG Solid Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5CHY

MFR# 19R5CHYISO/ANSI# SNMG190612N-EGCat# SNMG643EEG-AC6020MSeries SN

$23.40List $30.01 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

IC3/4

ShapeSquare

GradeAC6020M

MaterialSolid Carbide

CoatingAbsotech Platinum

Description

The Sumitomo 19R5CHY is a SNMG190612N-EG solid carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.

Specifications

Ansi codeSNMG643EEG

Chip breakerEEG

Clearance codeN

Coating finishAbsotech Platinum

Coating processCVD

Corner radius in3/64

Cutting directionNeutral

Full radiusNo

Hole diameter0.3126

Included angle90.0

Inscribed circle in3/4

Insert handNeutral

Insert holding methodPin; Screw

Insert length in3/4

Insert materialSolid Carbide

Insert shapeSquare

Insert size code643

Insert styleSNMG

Insert thickness in1/4

Iso codeSNMG190612N-EG

Manufacturers catalog numberSNMG643EEG-AC6020M

Manufacturer gradeAC6020M

Material gradeM20

Multi use toolYes

Primary workpiece materialStainless Steel

RakeNegative

Rake angle0

Relief angle0

StandardsANSI; ISO 13399

Tolerance codeM

Width in3/4
