Sumitomo

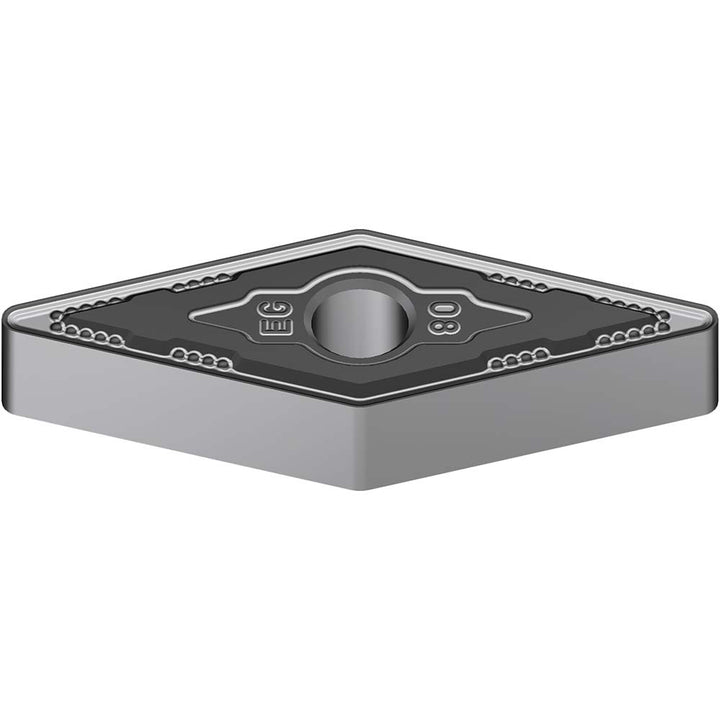

VNMG160404N-EG Solid Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5CMX
MFR# 19R5CMXISO/ANSI# VNMG160404N-EGCat# VNMG331EEG-AC6020MSeries VN
$18.42List $23.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC6020M
MaterialSolid Carbide
CoatingAbsotech Platinum
Description
The Sumitomo 19R5CMX is a VNMG160404N-EG solid carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.
Specifications
Ansi codeVNMG331EEG
Chip breakerEEG
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/64
Cutting directionNeutral
Full radiusNo
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-EG
Manufacturers catalog numberVNMG331EEG-AC6020M
Manufacturer gradeAC6020M
Material gradeM20
Multi use toolYes
Primary workpiece materialStainless Steel
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
