Sumitomo

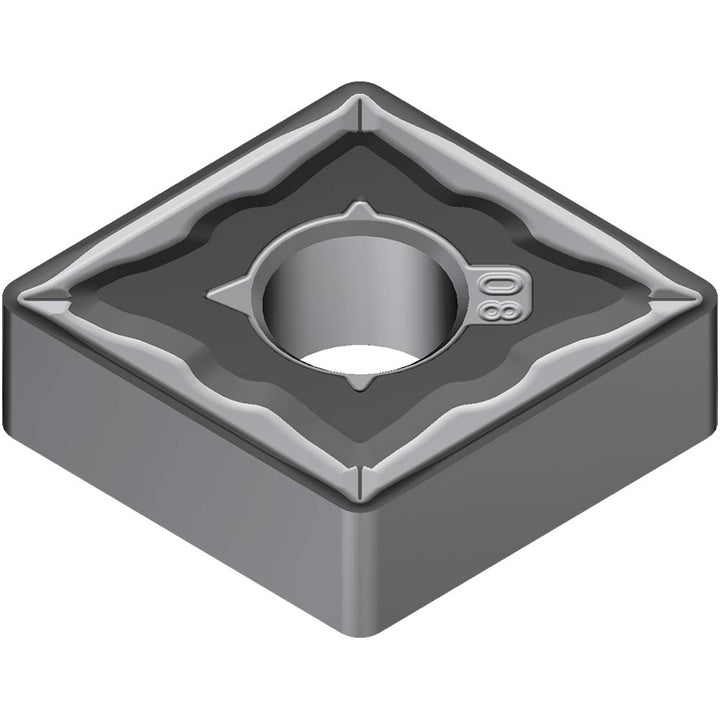

CNMG120412N-EM Solid Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5CNC
MFR# 19R5CNCISO/ANSI# CNMG120412N-EMCat# CNMG433EEM-AC6020MSeries CN
$11.50List $14.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC6020M
MaterialSolid Carbide
CoatingAbsotech Platinum
Description
The Sumitomo 19R5CNC is a CNMG120412N-EM solid carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.
Specifications
Ansi codeCNMG433EEM
Chip breakerEEM
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in3/64
Cutting directionNeutral
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412N-EM
Manufacturers catalog numberCNMG433EEM-AC6020M
Manufacturer gradeAC6020M
Material gradeM20
Multi use toolYes
Primary workpiece materialStainless Steel
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
