Sumitomo

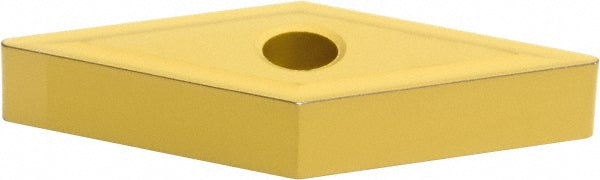

VNMG160408N-UZ Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RB292
MFR# 19RB292ISO/ANSI# VNMG160408N-UZSeries VN
$18.42List $23.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC830P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RB292 is a VNMG160408N-UZ carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Chip breakerENZ
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-UZ
Manufacturer gradeAC830P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
