Sumitomo

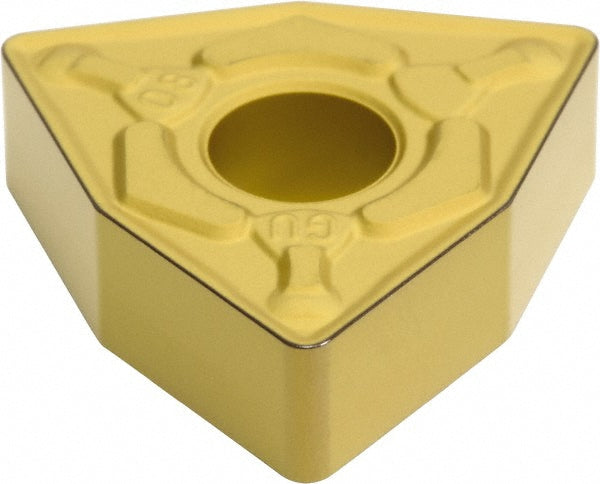

WNMG080408N-GU Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RB337
MFR# 19RB337ISO/ANSI# WNMG080408N-GUSeries TN
$11.50List $14.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC830P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RB337 is a WNMG080408N-GU carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Chip breakerEGU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-GU
Manufacturer gradeAC830P
RakePositive
Rake angle7
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
