Sumitomo

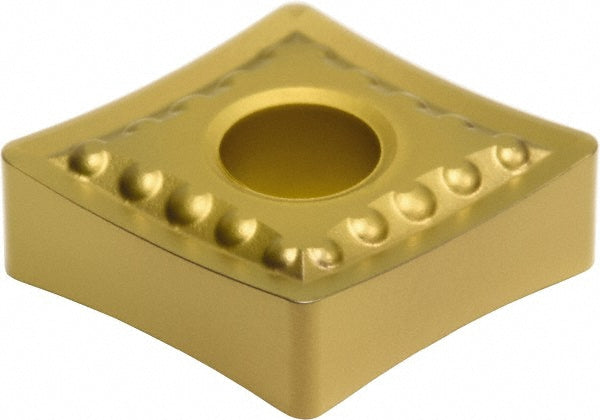

CNMG190612N-UP Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RB362
MFR# 19RB362ISO/ANSI# CNMG190612N-UPSeries CN
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeAC830P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RB362 is a CNMG190612N-UP carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Chip breakerEUP
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.3126
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612N-UP
Manufacturer gradeAC830P
RakePositive
Rake angle10
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
