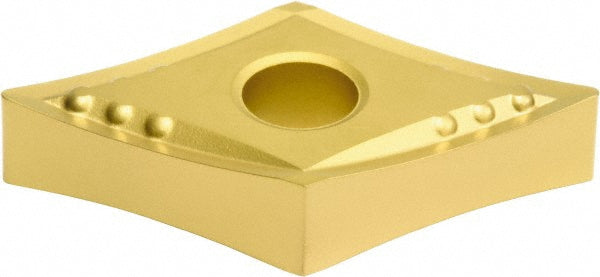

DNMG150404N-UP Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RB366

Sumitomo

DNMG150404N-UP Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RB366

MFR# 19RB366ISO/ANSI# DNMG150404N-UPSeries DN

$16.99List $21.40 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3

Description

The Sumitomo 19RB366 is a DNMG150404N-UP solid carbide indexable insert, grade AC830P, Al2O3 coated.

Specifications

Ansi codeDNMG431EUP
Chip breakerEUP
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-UP
Manufacturer gradeAC830P
RakePositive
Rake angle10
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
