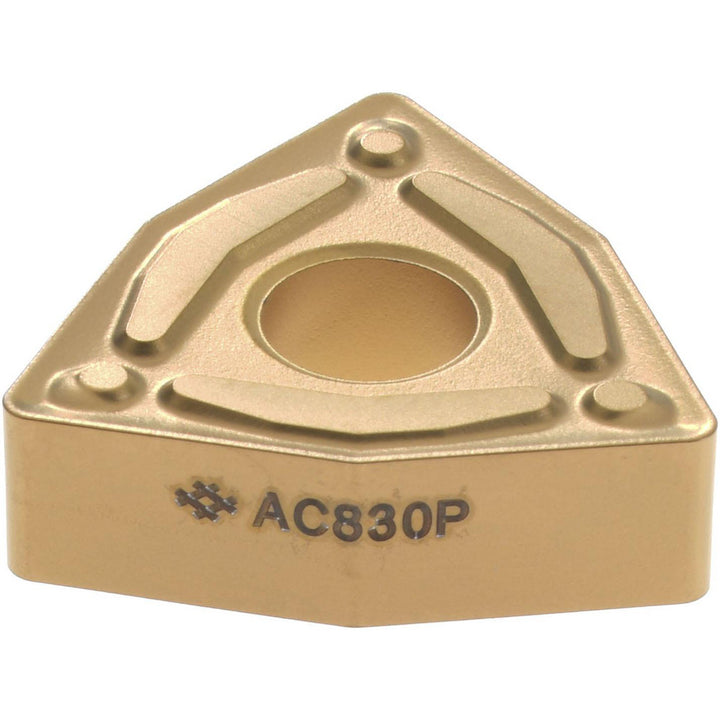

WNMG080408N-UG Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB384

Sumitomo

WNMG080408N-UG Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB384

MFR# 19RB384ISO/ANSI# WNMG080402Series TN

$12.31List $15.78 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeAC830P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RB384 is a WNMG080408N-UG carbide indexable insert, grade AC830P, Coated coated.

Specifications

Ansi insert codeWNMG432
Ansi size code432
Chip breakerENG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2300
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-UG
Iso insert codeWNMG080402
Iso size code080402
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
