Sumitomo

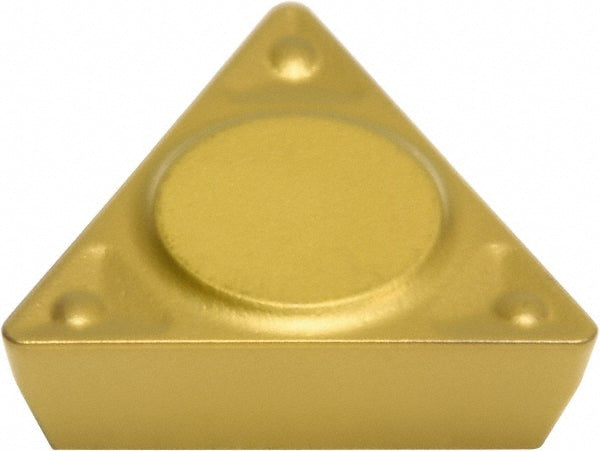

TPMR220408N-SF Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RB469
MFR# 19RB469ISO/ANSI# TPMR220408N-SFSeries TPMR
$21.50List $27.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RB469 is a TPMR220408N-SF solid carbide indexable insert, grade AC830P, Al2O3 coated. Suited for stainless steel, steel, superalloy.
Specifications
Ansi codeTPMR432ENF
Chip breakerENF
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Included angle60.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8661
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code432
Insert styleTPMR
Insert thickness in3/16
Iso codeTPMR220408N-SF
Manufacturer gradeAC830P
Primary workpiece materialStainless Steel; Steel; Superalloy
RakeNeutral
Rake angle0
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
