Sumitomo

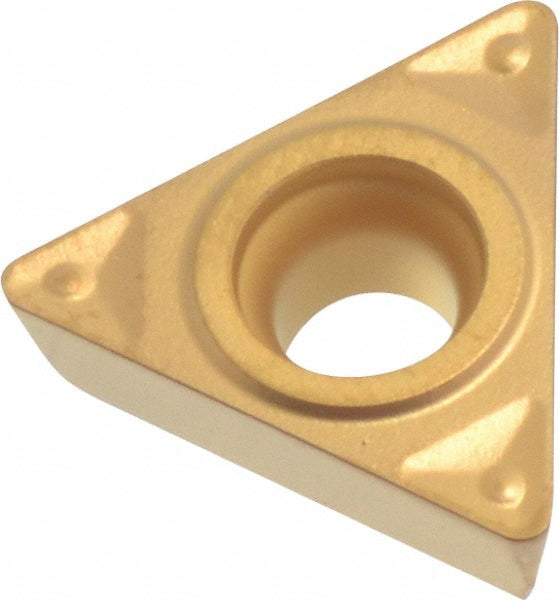

TPMT160408N-SF Solid Carbide Insert, Grade AC830P, Absotech - Sumitomo 19RB477
MFR# 19RB477ISO/ANSI# TPMT160408N-SFSeries TPMT
$12.49List $16.01
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC830P
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 19RB477 is a TPMT160408N-SF solid carbide indexable insert, grade AC830P, Absotech coated. Suited for stainless steel, steel, superalloy.
Specifications
Ansi codeTPMT332ENF
Chip breakerENF
Clearance codeP
Coating finishAbsotech
Coating processCVD
Corner radius in1/32
Hole diameter0.1690
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code332
Insert styleTPMT
Insert thickness in3/16
Iso codeTPMT160408N-SF
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
Primary workpiece materialStainless Steel; Steel; Superalloy
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
