Sumitomo

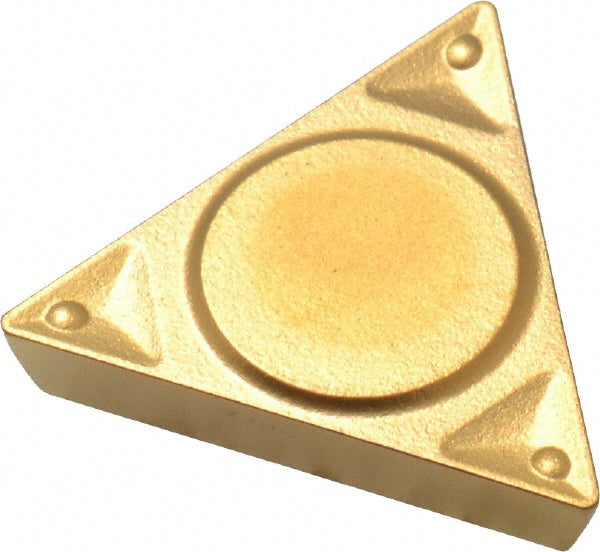

TPMR160304N-SF Solid Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB485
MFR# 19RB485ISO/ANSI# TPMR160304N-SFSeries TPMR
$15.43List $19.45
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC830P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RB485 is a TPMR160304N-SF solid carbide indexable insert, grade AC830P, Coated coated. Suited for stainless steel, steel, super-alloys.
Specifications
Ansi codeTPMR321ENF
Chip breakerENF
Clearance codeP
Coating finishCoated
Coating processCVD
Corner radius in1/64
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code321
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR160304N-SF
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
Primary workpiece materialStainless Steel; Steel; Super-alloys
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
