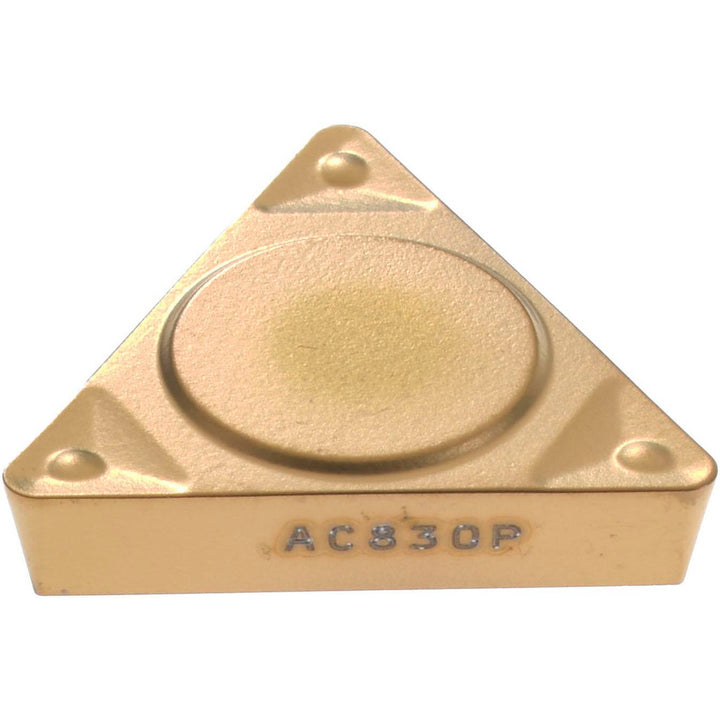

TPMR160308N-SF Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB486

Sumitomo

TPMR160308N-SF Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB486

MFR# 19RB486ISO/ANSI# TPMR160308Series TPMR

$13.41List $17.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAC830P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RB486 is a TPMR160308N-SF carbide indexable insert, grade AC830P, Coated coated. Suited for stainless steel, steel, superalloy.

Specifications

Ansi insert codeTPMR322
Ansi size code322
Chip breakerENF
Chip breaker operationLight Machining; Medium Machining
Clearance codeP
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR160308N-SF
Iso insert codeTPMR160308
Iso size code160308
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
Primary workpiece materialStainless Steel; Steel; Superalloy
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
