Sumitomo

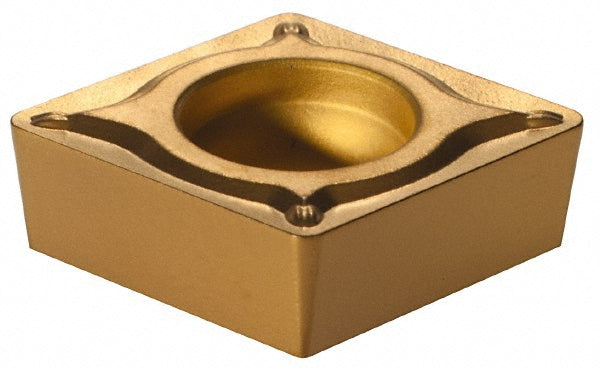

CCMT120408N-SU Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RB633
MFR# 19RB633ISO/ANSI# CCMT120408N-SUSeries CC
$13.06List $16.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC830P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RB633 is a CCMT120408N-SU carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408N-SU
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
