Sumitomo

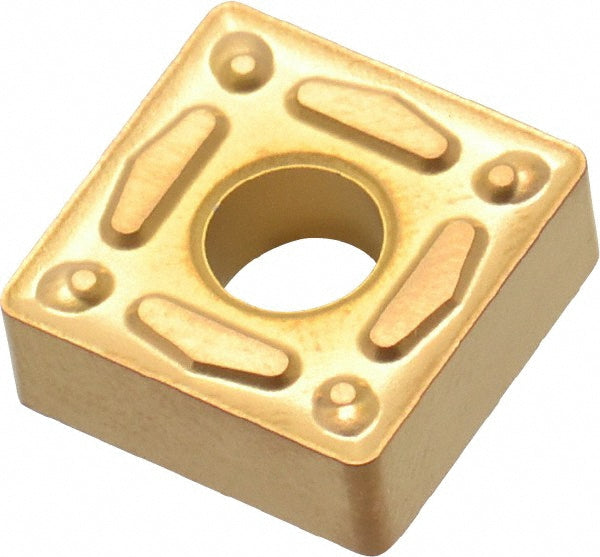

SNMG432 Solid Carbide Insert, Grade AC830P, Absotech - Sumitomo 19RB792
MFR# 19RB792ISO/ANSI# SNMG432Series SN
$11.96List $15.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeAC830P
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 19RB792 is a SNMG432 solid carbide indexable insert, grade AC830P, Absotech coated. Suited for m, p.
Specifications
Ansi codeSNMG432ENG
Chip breakerENG
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle90.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialSolid Carbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG432
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
Width in1/2
