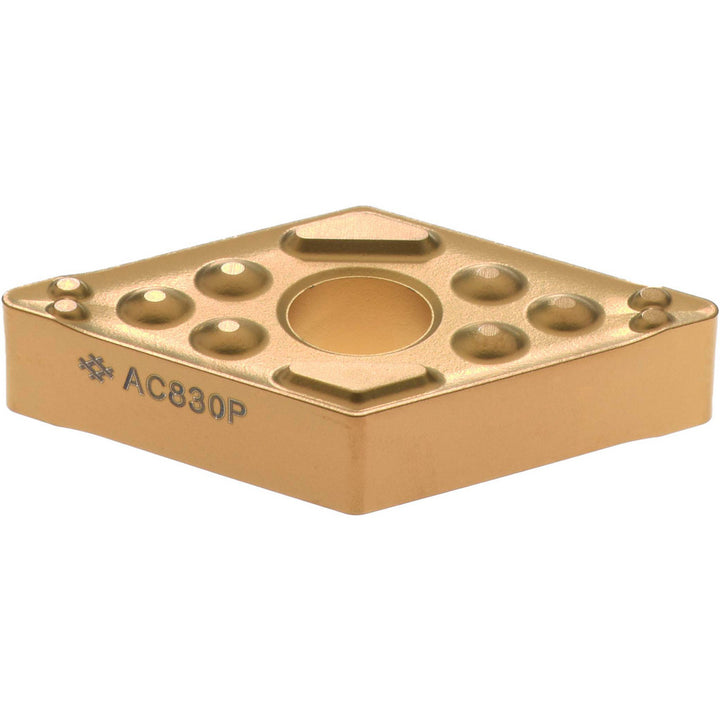

DNMG150408N-UG Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB794

Sumitomo

DNMG150408N-UG Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB794

MFR# 19RB794ISO/ANSI# DNMG150408Series DN

$17.85List $22.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC830P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RB794 is a DNMG150408N-UG carbide indexable insert, grade AC830P, Coated coated.

Specifications

Ansi insert codeDNMG432
Ansi size code432
Chip breakerENG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-UG
Iso insert codeDNMG150408
Iso size code150408
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
