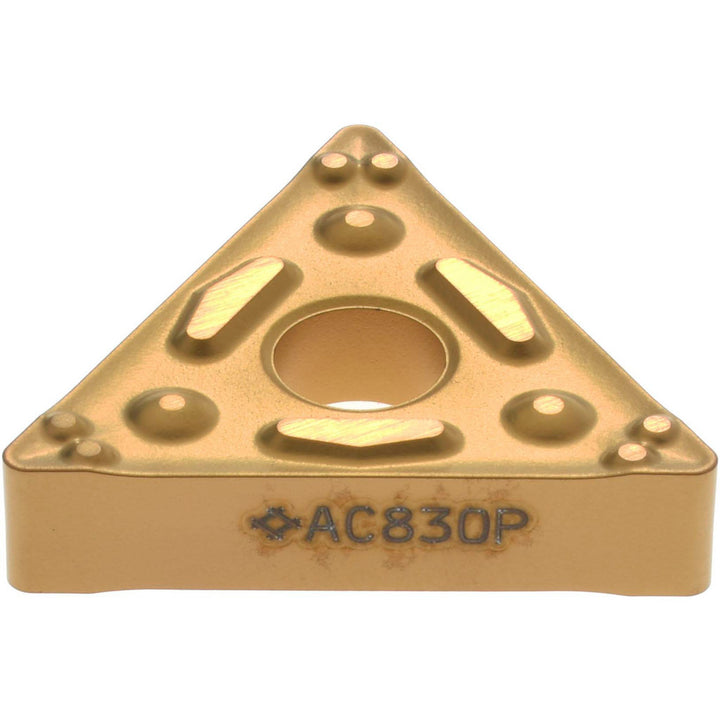

TNMG220408N-UG Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB807

Sumitomo

TNMG220408N-UG Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB807

MFR# 19RB807ISO/ANSI# TNMG220408Series TN

$13.89List $17.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeAC830P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RB807 is a TNMG220408N-UG carbide indexable insert, grade AC830P, Coated coated.

Specifications

Ansi insert codeTNMG432
Ansi size code432
Chip breakerENG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2030
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408N-UG
Iso insert codeTNMG220408
Iso size code220408
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
