Sumitomo

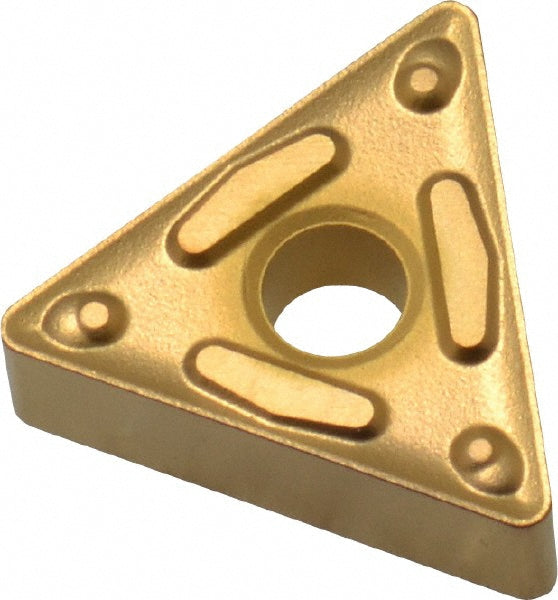

TNMG160408N-UG Solid Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB841
MFR# 19RB841ISO/ANSI# TNMG160408N-UGSeries TN
$9.57List $12.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC830P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RB841 is a TNMG160408N-UG solid carbide indexable insert, grade AC830P, Coated coated. Suited for m, p.
Specifications
Ansi codeTNMG332ENG
Chip breakerENG
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160408N-UG
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
