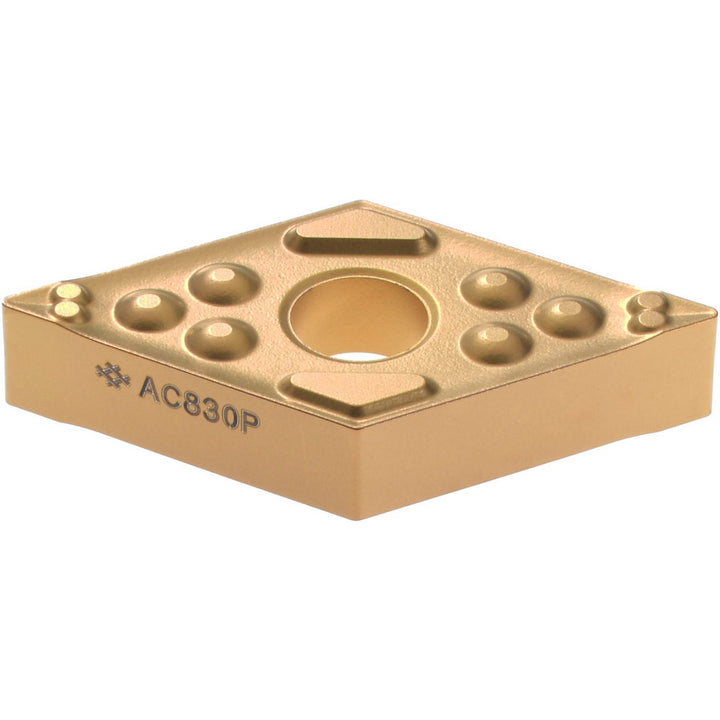

DNMG150404N-UG Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB893

Sumitomo

DNMG150404N-UG Carbide Insert, Grade AC830P, Coated - Sumitomo 19RB893

MFR# 19RB893ISO/ANSI# DNMG150404Series DN

$17.85List $22.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC830P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RB893 is a DNMG150404N-UG carbide indexable insert, grade AC830P, Coated coated.

Specifications

Ansi insert codeDNMG431
Ansi size code431
Chip breakerENG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-UG
Iso insert codeDNMG150404
Iso size code150404
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
