Sumitomo

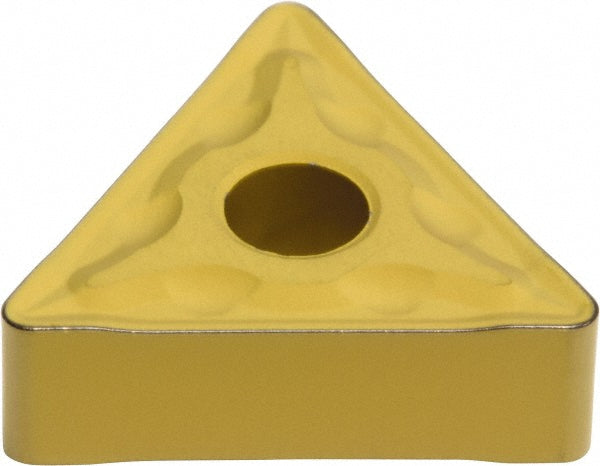

TNMG220416N-MU Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBAFE
MFR# 19RBAFEISO/ANSI# TNMG220416N-MUSeries TN
$13.89List $17.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RBAFE is a TNMG220416N-MU solid carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi codeTNMG434EMU
Chip breakerEMU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Hole diameter0.2031
Included angle60.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code434
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220416N-MU
Manufacturer gradeAC830P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
