Sumitomo

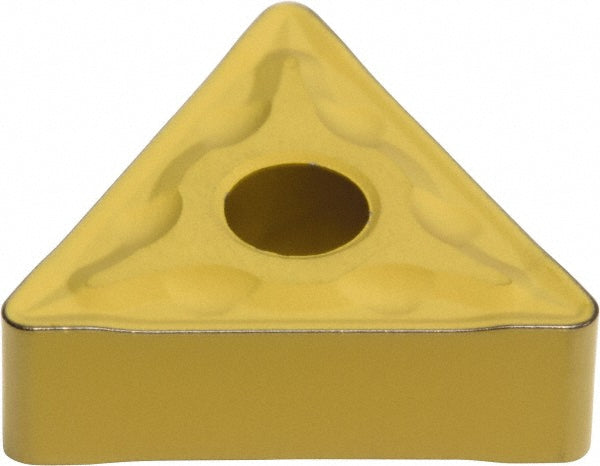

TNMG270612N-MU Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBAFF
MFR# 19RBAFFISO/ANSI# TNMG270612N-MUSeries TN
$24.59List $31.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTriangle
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RBAFF is a TNMG270612N-MU solid carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi codeTNMG543EMU
Chip breakerEMU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.2031
Included angle60.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0827
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code543
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG270612N-MU
Manufacturer gradeAC830P
RakeNegative
Rake angle4
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
