Sumitomo

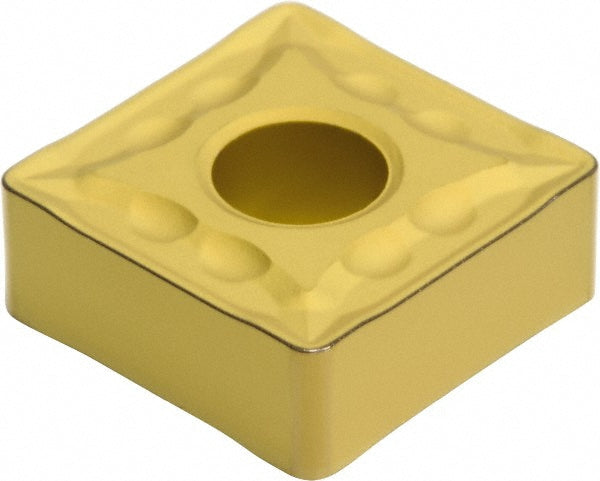

SNMG120408N-MU Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBAFG
MFR# 19RBAFGISO/ANSI# SNMG120408Series SN
$11.96List $15.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeAC830P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RBAFG is a SNMG120408N-MU carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi insert codeSNMG432
Ansi size code432
Chip breakerEMU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120408N-MU
Iso insert codeSNMG120408
Iso size code120408
Manufacturer gradeAC830P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialUniversal
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
Width in1/2
