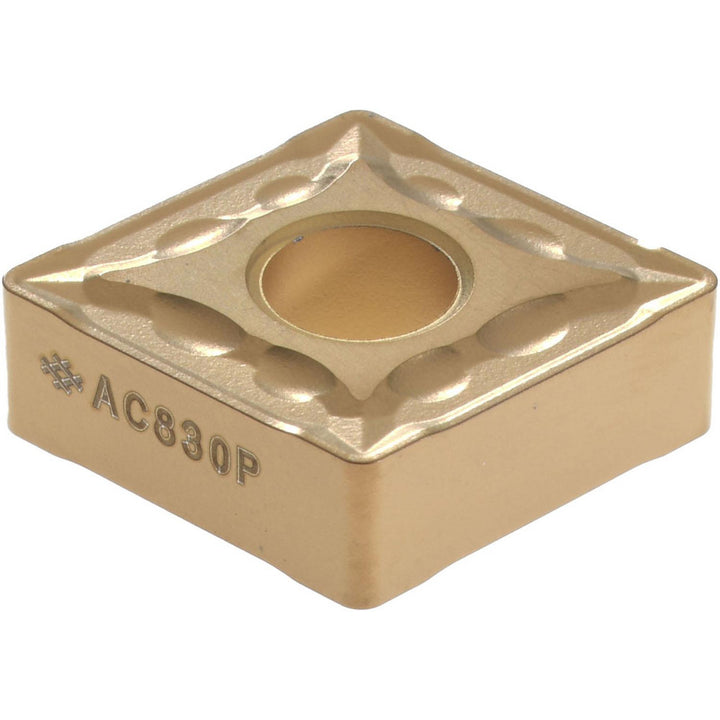

CNMG120408N-MU Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBAFI

Sumitomo

CNMG120408N-MU Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBAFI

MFR# 19RBAFIISO/ANSI# CNMG120408Series CN

$12.31List $15.78 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC830P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RBAFI is a CNMG120408N-MU carbide indexable insert, grade AC830P, Coated coated.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerEMU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-MU
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
