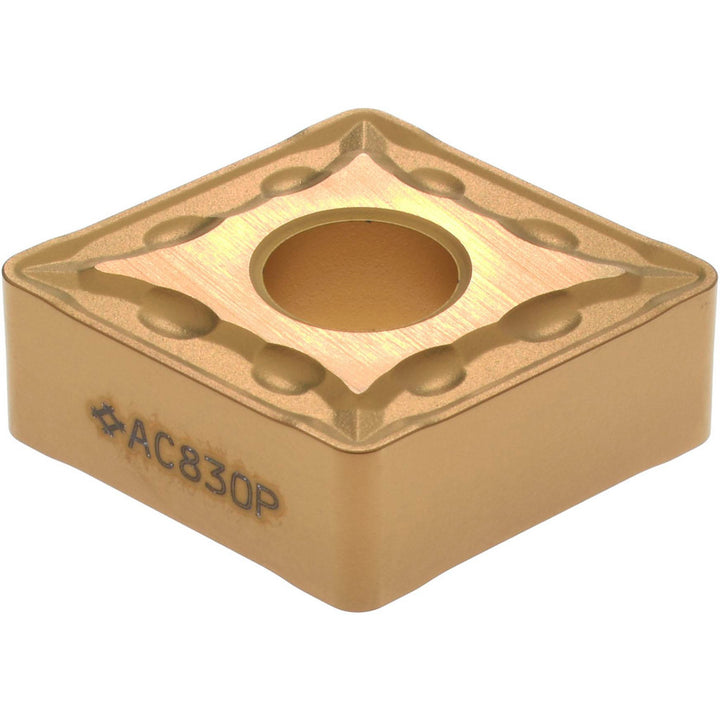

CNMG160612N-MU Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBAFL

Sumitomo

CNMG160612N-MU Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBAFL

MFR# 19RBAFLISO/ANSI# CNMG160612Series CN

$20.31List $26.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC830P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RBAFL is a CNMG160612N-MU carbide indexable insert, grade AC830P, Coated coated.

Specifications

Ansi insert codeCNMG543
Ansi size code543
Chip breakerEMU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in3/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612N-MU
Iso insert codeCNMG160612
Iso size code160612
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
