Sumitomo

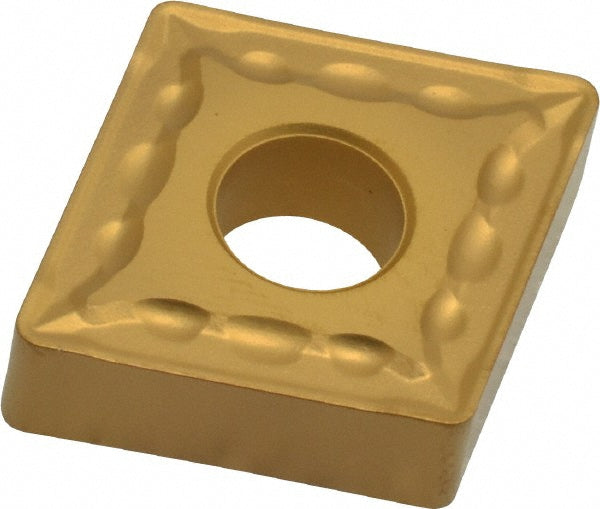

CNMG190612N-MU Solid Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBAFN
MFR# 19RBAFNISO/ANSI# CNMG190612N-MUSeries CN
$25.98List $33.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RBAFN is a CNMG190612N-MU solid carbide indexable insert, grade AC830P, Coated coated. Suited for m, p.
Specifications
Ansi codeCNMG643EMU
Chip breakerEMU
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in3/64
Hole diameter0.3130
Included angle80.0
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612N-MU
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
