Sumitomo

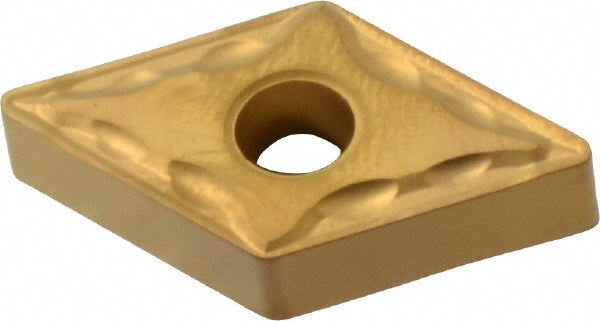

DNMG150408N-MU Solid Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBAFP
MFR# 19RBAFPISO/ANSI# DNMG150408N-MUSeries DN
$17.85List $22.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RBAFP is a DNMG150408N-MU solid carbide indexable insert, grade AC830P, Coated coated. Suited for m, p.
Specifications
Ansi codeDNMG432EMU
Chip breakerEMU
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-MU
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
