Sumitomo

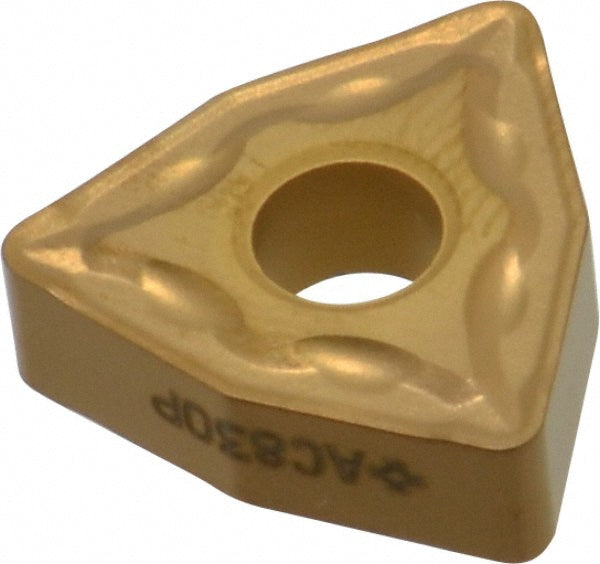

WNMG080412N-MU Solid Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBAFU
MFR# 19RBAFUISO/ANSI# WNMG080412N-MUSeries TN
$14.14List $17.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC830P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RBAFU is a WNMG080412N-MU solid carbide indexable insert, grade AC830P, Coated coated. Suited for m, p.
Specifications
Ansi codeWNMG433EMU
Chip breakerEMU
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in3/64
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412N-MU
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
