Sumitomo

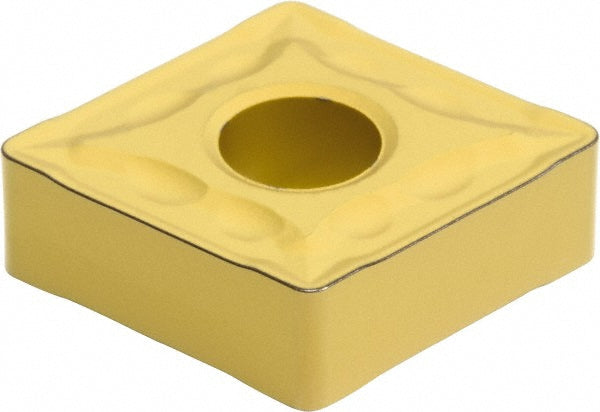

CNMG160608N-MU Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBALF
MFR# 19RBALFISO/ANSI# CNMG160608N-MUSeries CN
$20.31List $26.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RBALF is a CNMG160608N-MU solid carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi codeCNMG542EMU
Chip breakerEMU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2500
Included angle80.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608N-MU
Manufacturer gradeAC830P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
