Sumitomo

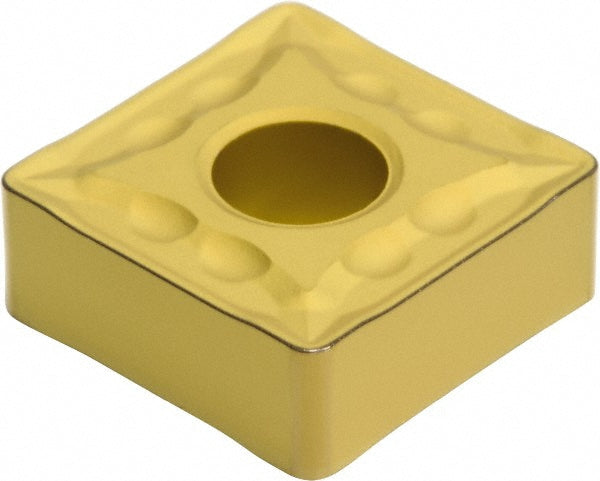

SNMG190612N-MU Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBALL
MFR# 19RBALLISO/ANSI# SNMG190612N-MUSeries SN
$23.40List $30.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RBALL is a SNMG190612N-MU solid carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi codeSNMG643EMU
Chip breakerEMU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.3126
Included angle90.0
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialSolid Carbide
Insert shapeSquare
Insert size code643
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190612N-MU
Manufacturer gradeAC830P
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
Width in3/4
