Sumitomo

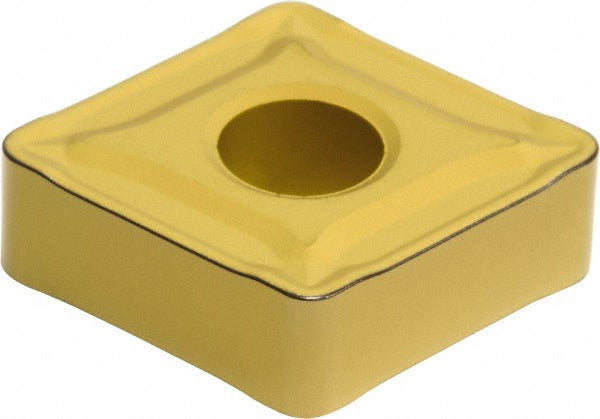

CNMG160612N-MX Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBANG
MFR# 19RBANGISO/ANSI# CNMG160612N-MXSeries CN
$20.31List $26.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RBANG is a CNMG160612N-MX solid carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi codeCNMG543EMX
Chip breakerEMX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.2500
Included angle80.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612N-MX
Manufacturer gradeAC830P
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
