Sumitomo

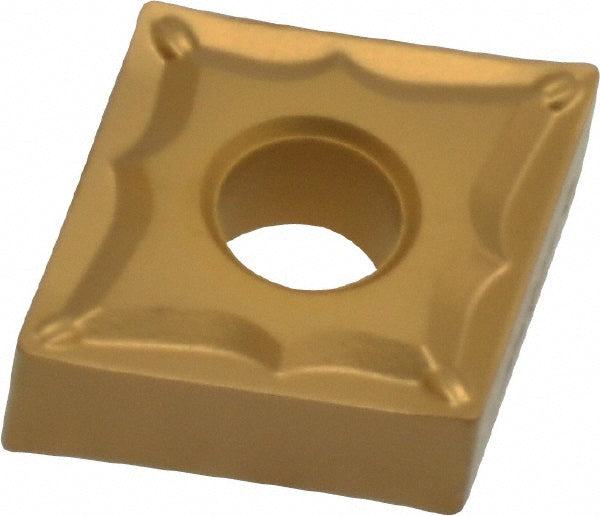

CNMG120404N-SU Solid Carbide Insert, Grade AC830P, Absotech - Sumitomo 19RBANZ
MFR# 19RBANZISO/ANSI# CNMG120404N-SUSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 19RBANZ is a CNMG120404N-SU solid carbide indexable insert, grade AC830P, Absotech coated. Suited for m, p.
Specifications
Ansi codeCNMG431ESU
Chip breakerESU
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius in1/64
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-SU
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
Primary workpiece materialM; P
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
