Sumitomo

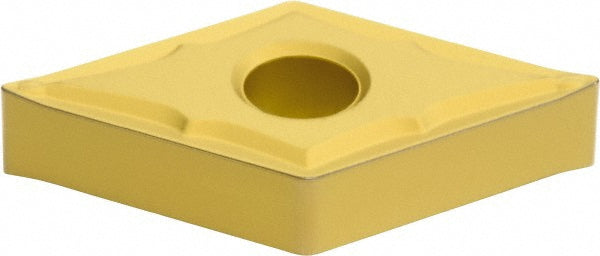

DNMG150412N-SU Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBAPM
MFR# 19RBAPMISO/ANSI# DNMG150412N-SUSeries DN
$17.85List $22.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RBAPM is a DNMG150412N-SU solid carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi codeDNMG433ESU
Chip breakerESU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150412N-SU
Manufacturer gradeAC830P
RakeNegative
Rake angle13
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
