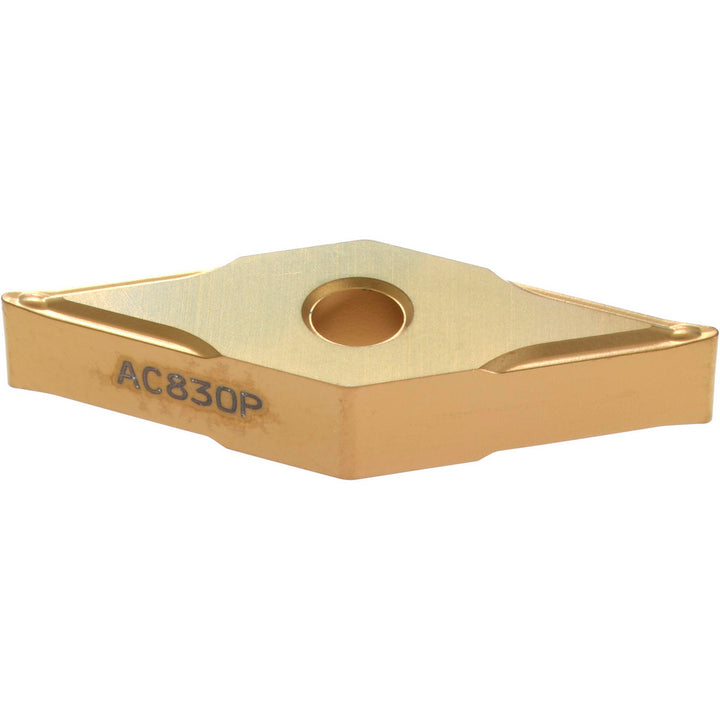

VNMG160404N-SU Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBAPR

Sumitomo

VNMG160404N-SU Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBAPR

MFR# 19RBAPRISO/ANSI# VNMG160404Series VN

$18.42List $23.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC830P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RBAPR is a VNMG160404N-SU carbide indexable insert, grade AC830P, Coated coated.

Specifications

Ansi insert codeVNMG331
Ansi size code331
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-SU
Iso insert codeVNMG160404
Iso size code160404
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
