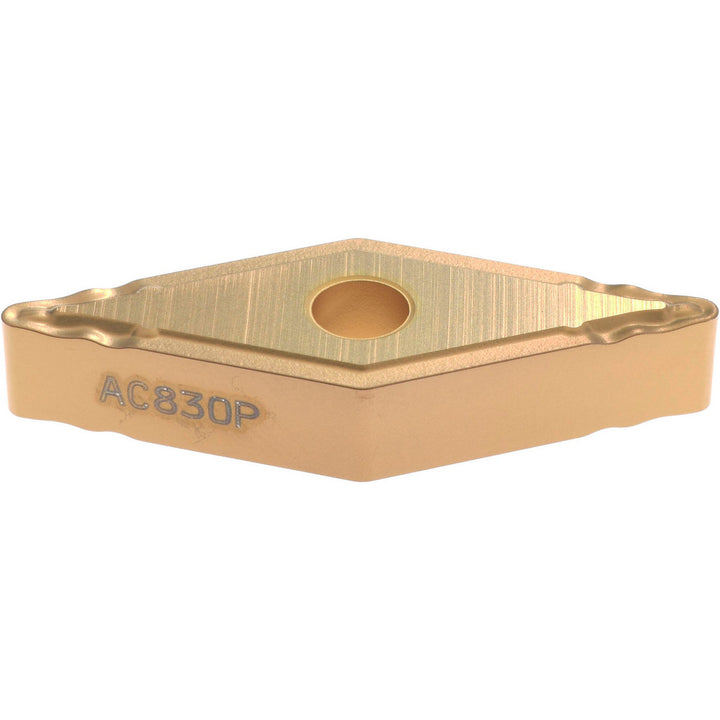

VNMG160408N-SX Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBBJY

Sumitomo

VNMG160408N-SX Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBBJY

MFR# 19RBBJYISO/ANSI# VNMG160408Series VN

$18.42List $23.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC830P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RBBJY is a VNMG160408N-SX carbide indexable insert, grade AC830P, Coated coated.

Specifications

Ansi insert codeVNMG332
Ansi size code332
Chip breakerESX
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-SX
Iso insert codeVNMG160408
Iso size code160408
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakeNegative
Relief angle0
Secondary workpiece materialUniversal
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
