Sumitomo

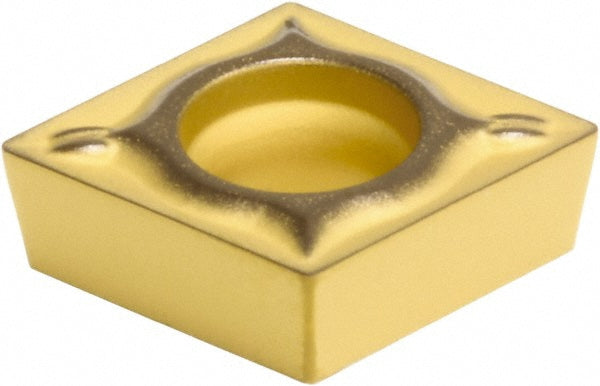

CCMT09T304N-SU Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBBPE
MFR# 19RBBPEISO/ANSI# CCMT09T304N-SUSeries CC
$12.88List $16.23
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RBBPE is a CCMT09T304N-SU solid carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi codeCCMT32.51ESU
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304N-SU
Manufacturer gradeAC830P
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
