Sumitomo

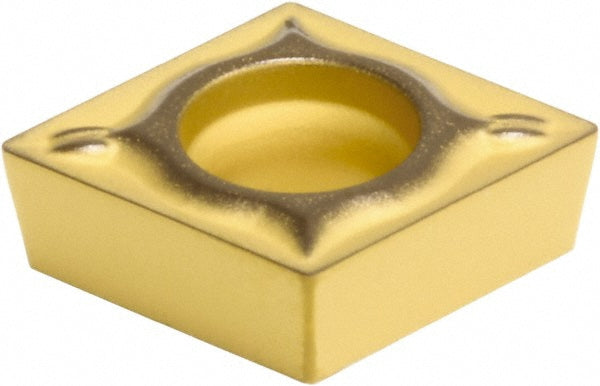

CCMT09T308N-SU Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBBPF
MFR# 19RBBPFISO/ANSI# CCMT09T308N-SUSeries CC
$10.45List $13.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RBBPF is a CCMT09T308N-SU solid carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi codeCCMT32.52ESU
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308N-SU
Manufacturer gradeAC830P
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
