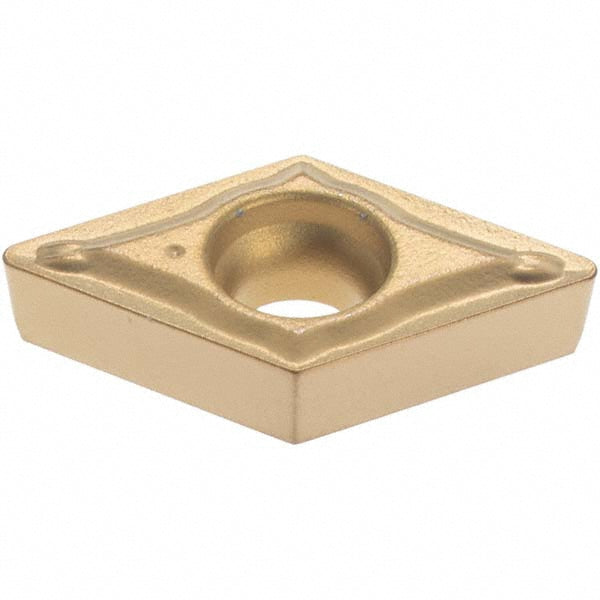

DCMT070204N-SU Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBBPH

Sumitomo

DCMT070204N-SU Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBBPH

MFR# 19RBBPHISO/ANSI# DCMT070204Series DC

$14.40List $18.46 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC830P
MaterialCarbide
CoatingAl2O3

Description

The Sumitomo 19RBBPH is a DCMT070204N-SU carbide indexable insert, grade AC830P, Al2O3 coated.

Specifications

Ansi insert codeDCMT21.51
Ansi size code21.51
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1100
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3031
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204N-SU
Iso insert codeDCMT070204
Iso size code070204
Manufacturer gradeAC830P
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialUniversal
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
