Sumitomo

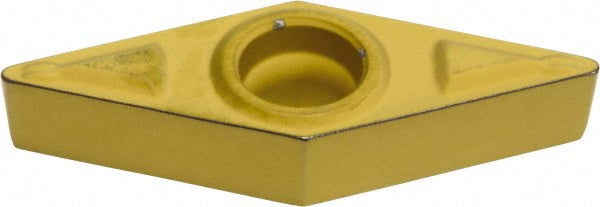

VBMT160408N-SU Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBBPW
MFR# 19RBBPWISO/ANSI# VBMT160408N-SUSeries VB
$23.27List $29.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC830P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19RBBPW is a VBMT160408N-SU carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Chip breakerESU
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160408N-SU
Manufacturer gradeAC830P
RakePositive
Rake angle8
Relief angle5
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
