Sumitomo

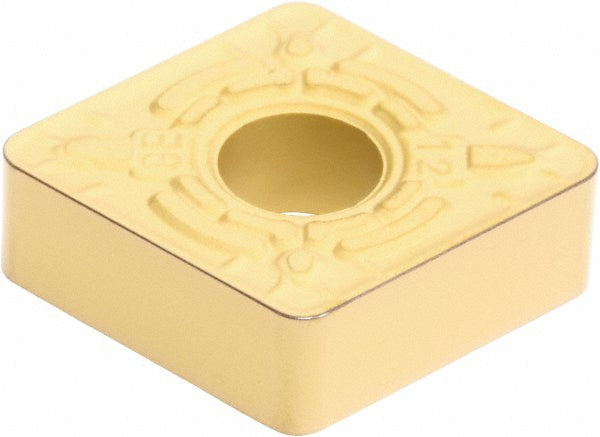

CNMG120408N-GE Solid Carbide Insert, Grade AC830P, Al2O3 - Sumitomo 19RBBYB
MFR# 19RBBYBISO/ANSI# CNMG120408N-GESeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RBBYB is a CNMG120408N-GE solid carbide indexable insert, grade AC830P, Al2O3 coated.
Specifications
Ansi codeCNMG432EGE
Chip breakerEGE
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-GE
Manufacturer gradeAC830P
RakePositive
Rake angle3
Relief angle0
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
