Sumitomo

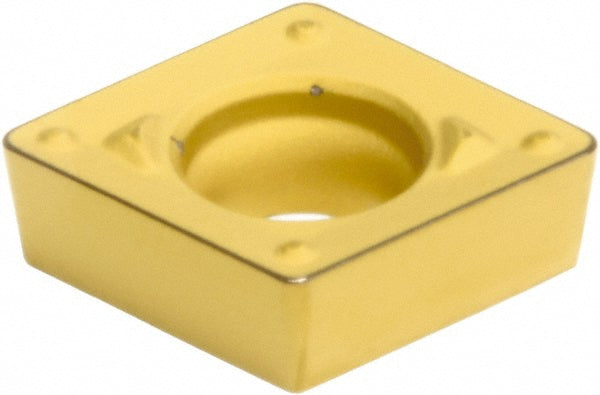

CCMT060204N-SK Solid Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBW0J
MFR# 19RBW0JISO/ANSI# CCMT060204N-SKSeries CC
$10.42List $13.13
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RBW0J is a CCMT060204N-SK solid carbide indexable insert, grade AC830P, Coated coated.
Specifications
Ansi codeCCMT21.51ENK
Chip breakerENK
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.1120
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204N-SK
Manufacturer gradeAC830P
RakePositive
Relief angle7
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
