Sumitomo

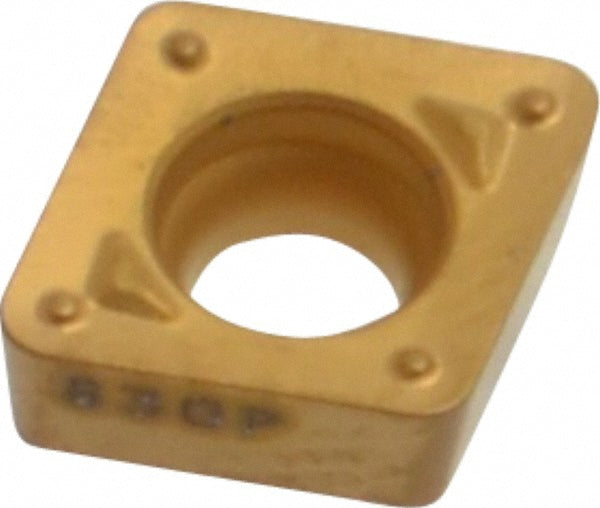

CCMT060208N-SK Solid Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBW0X
MFR# 19RBW0XISO/ANSI# CCMT060208N-SKSeries CC
$9.06List $11.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC830P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RBW0X is a CCMT060208N-SK solid carbide indexable insert, grade AC830P, Coated coated. Suited for m, p.
Specifications
Ansi codeCCMT21.52ENK
Chip breakerENK
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208N-SK
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
Primary workpiece materialM; P
RakePositive
Relief angle7
Secondary workpiece materialUniversal
StandardsANSI; ISO 13399
Tolerance codeM
