Sumitomo

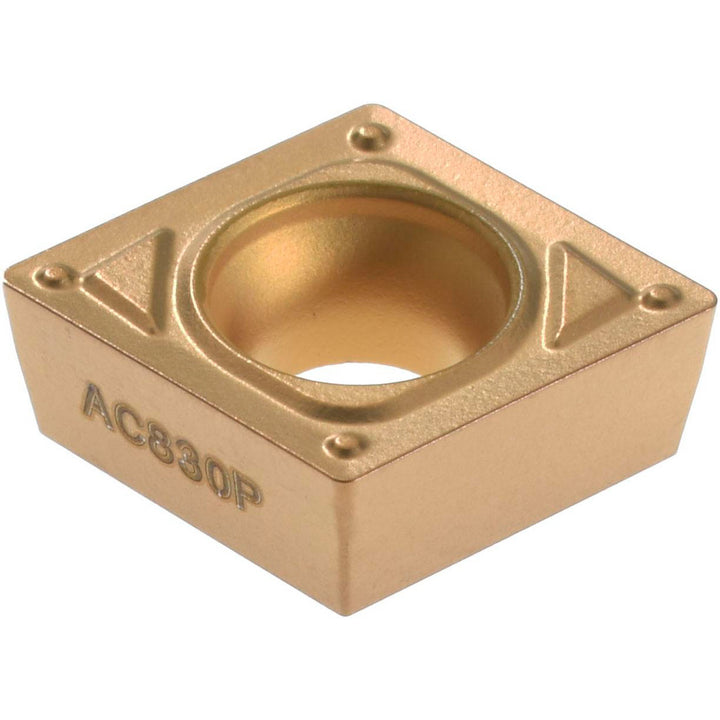

CCMT09T304N-SK Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBW1J
MFR# 19RBW1JISO/ANSI# CCMT09T304Series CC
$12.88List $16.23
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC830P
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19RBW1J is a CCMT09T304N-SK carbide indexable insert, grade AC830P, Coated coated.
Specifications
Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerENK
Chip breaker operationFinishing
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304N-SK
Iso insert codeCCMT09T304
Iso size code09T304
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakePositive
Relief angle7
Secondary workpiece materialUniversal
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
