Sumitomo

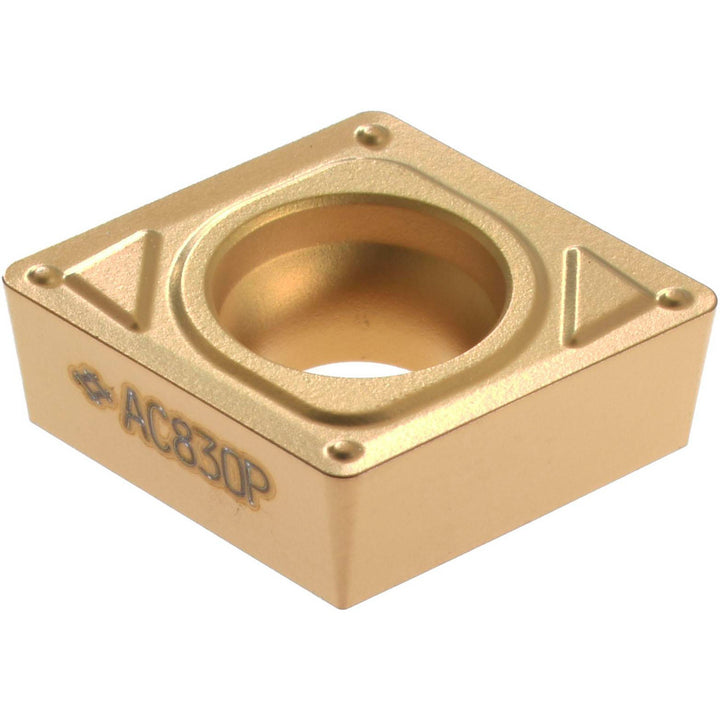

CCMT120408N-SK Carbide Insert, Grade AC830P, Coated - Sumitomo 19RBW2J
MFR# 19RBW2JISO/ANSI# CCMT120408Series CC
$13.06List $16.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC830P
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19RBW2J is a CCMT120408N-SK carbide indexable insert, grade AC830P, Coated coated.
Specifications
Ansi insert codeCCMT432
Ansi size code432
Chip breakerENK
Chip breaker operationFinishing
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2170
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408N-SK
Iso insert codeCCMT120408
Iso size code120408
Manufacturer gradeAC830P
Material gradeC5; C5A; C6
RakePositive
Relief angle7
Secondary workpiece materialUniversal
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
